Boresight Calibration
Last updated
Last updated
Rigorous objective calibrations ensure that parameters are valid for flights at any location, altitude, speed, etc. Without this, orthorectification results with a given set of parameters may vary. Our calibration method provides a report of the accuracy/quality of the calibration which is useful for assessing stability over time.
Frame Cameras go through a three-step calibration process. This process starts with what we call an "indoor calibration", then moves to an "outdoor calibration", and finally the results of these calibrations go through a refinement processes.
The first step for frame camera calibration is to perform an "indoor calibration". This involves physically moving the camera around a target grid and taking photos by hand at various angles, and heights. These images are then used in a software to select the center points of all visible targets in an image. Once the center points are measured, an initial IOP calibration is performed which includes solving for distortion, focal length, and other internal camera parameters.
Once these values are derived, we perform an "outdoor calibration" where the camera is integrated into the full sensor package and mounted onto the UAV. This outdoor calibration is flown at three different altitudes and speeds over a field of targets. The imagery collected form this flight is then measured with the assistance of survey points that were taken at the center of each target.
Finally, these measurements, and values are processed and refined in software to achieve final calibration values. These values will result in orthomosaics being generated within determined acceptable spatial accuracy ranges for the camera.
To perform a LiDAR calibration, the sensor is flown on the complete sensor package over a set of huts at three various altitudes. This data is then brought into software where the targets are isolated from the rest of the collected data. From there, a supervised extraction of target profiles is performed from multiple discrete calibration passes in multiple flying directions, heights, and positions relative to the sensor. This process is iterated on to optimize boresight angles by minimizing discrepancies between profiles. The objective of this work is to minimize discrepancy between LiDAR point pairs from different flying “tracks” for correct boresight.

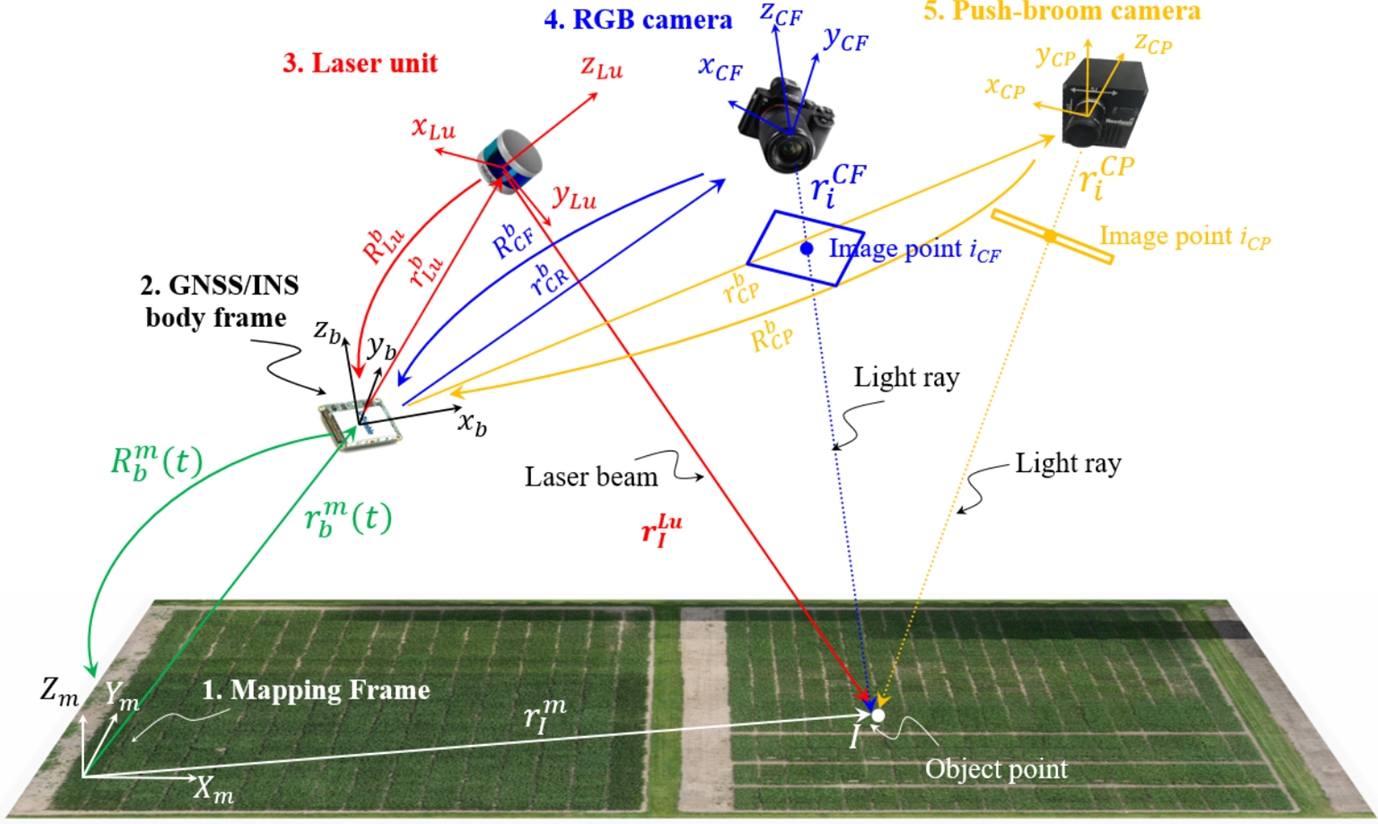

To calibrate these types of cameras we utilize a reformulated collinearity equation model where the image coordinates are represented as a function of the GNSS/INS position and orientation, GCP ground coordinates, lever arm components, and boresight angles. This data is collected with the line-scan camera integrated into the sensor package and flown at multiple altitudes and speeds over a target field. The objective of this calibration is to minimize discrepancy between image-based GCP measurements and their RTK ground truth from different flying “tracks” and solve for sensor to IMU time delays.
